Product Description

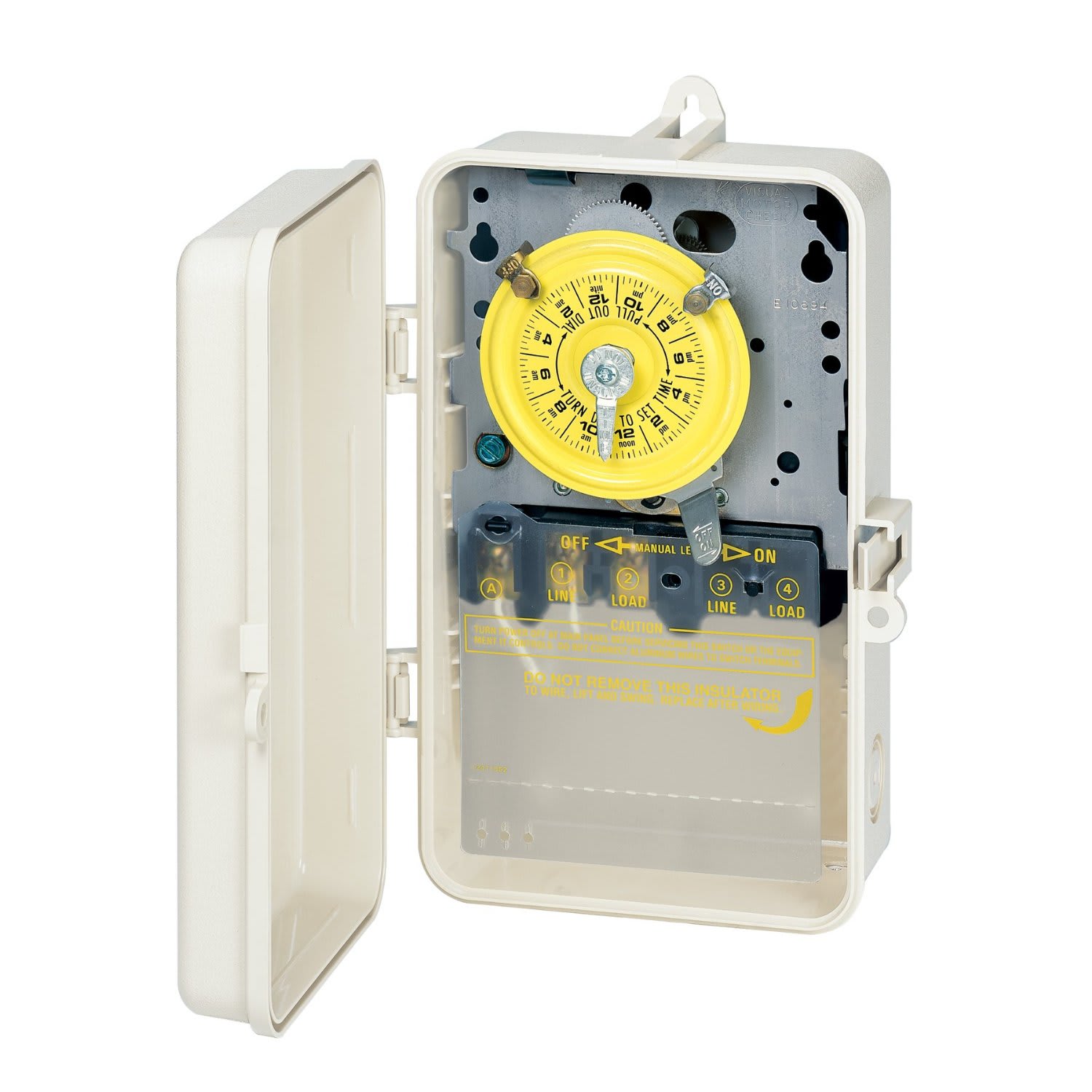

Intermatic T101P3
110 Volt Mechanical Timer
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
| Input Voltage Range(s) | 120 VAC, 60 Hz | Maximum ON/OFF Operations | 12 |
| Number Of Circuits | 1 | Operation Mode | 24 hour |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Switch Type | SPST |
| Electronic Ballast | 16 A, 120 VAC | Enclosure Type | Outdoor type 3R metal, Outdoor type 3R plastic |
| Maximum Power Consumption (W) | 3 W | Wiring Option | Terminals |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz | Warranty Period | 1-Year limited |
| Application Compatibilities | LED | Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Heater Control Output | 10 A, 250 VAC MAX, 60 Hz | Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz | Knockout Dimensions Back | 1/2" and 3/4" combination |
| Knockout Dimensions Bottom | (2) 1/2" and 3/4" | Motor (Three-Phase) | 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Pilot Duty (NO) | 1000 VA, 120-240 VAC, 60 Hz | Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| RoHS Certification | No | Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz | Operating Temperature Max (°C) | 54 |
| Operating Temperature Max (°F) | 130 | Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 | Product Depth (in) | 4 |
| Product Depth (mm) | 101.6 | Product Height (in) | 10 |
| Product Height (mm) | 254 | Product Width (in) | 6.5 |
| Product Width (mm) | 165.1 |
