Product Description

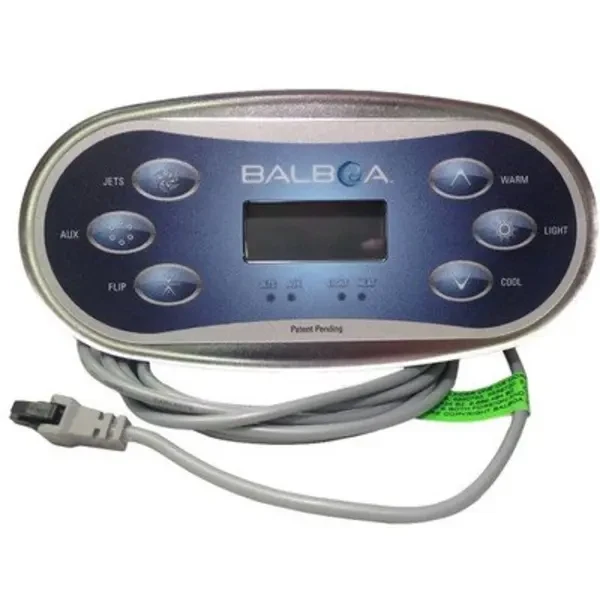

Balboa TP600 6-Button LCD Spa Topside Control Panel
FREE UPS Ground Shipping, UPS 2-Day Add $44.99
Description
The Balboa 34-55673-K TP600 Spa Topside Control Panel is a full-feature spa-side interface designed for Balboa BP-series spa systems. It provides expanded 6-button control over spa functions including jets, lighting, auxiliary equipment, temperature adjustment, and menu navigation depending on overlay configuration.
This is one of the most widely used Balboa TP-series keypads due to its compatibility across many BP spa pack configurations and its flexible button mapping system.
Key Features
- OEM Balboa TP600 spa control panel
- 6-button multifunction interface
- LCD display shows temperature and system status
- Compatible with Balboa BP-series control systems
- Controls jets, auxiliary functions, lighting, temperature, and menu access
- 4-pin Molex waterproof connector
- Durable outdoor-rated spa housing
- Multiple overlay configurations supported (80-12101 and variants)
- Widely used replacement spa keypad
- High compatibility across BP-series spa packs
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balboa Water Group |
| MPN | 34-55673-K |
| Base Part | 55673 |
| Model | TP600 |
| Buttons | 6 |
| Button Layout | J/A/F/W/L/C (varies by overlay) |
| Display | LCD |
| Connector | 4-Pin Molex |
| Cable Length | ~7 ft |
| Panel Size | ~7.1" x 3.5" |
| Series | TP / BP Series |
| Application | Spa / Hot Tub |
| Condition | New |
