Product Description

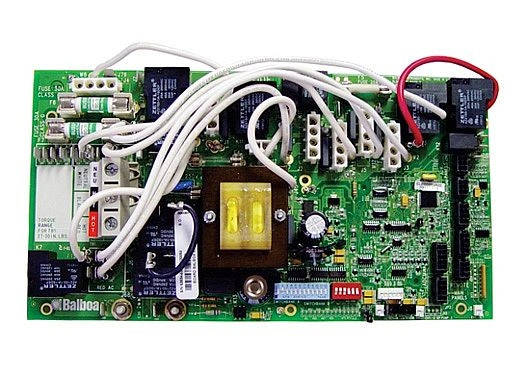

Balboa EL2000 Circuit Board 33-53834-K
Balboa EL2000-M3 Tech & Info Sheet
Description
SKU: 53834
MPN: 53834
Model: EL2000M3
UPC: 753610462651
Manufacturer: Balboa Water Group®
Warranty: 1 year with manufacturer
Features:
- Chip: EL2000M3R2C
- Supports a 2-speed primary and secondary pump, blower, circulation pump, ozonator/UVC, stereo & light.
Product Specifications:
- Pump 1: 2-Speed
- Pump 2: 1-Speed
- Circulation Pump / Blower
- Ozone
- Light Circuits (12V or 120V)
- Circuit Board – EL2000 Mach 3 (Generic)
- ML Series: P1-P2-BL-CIRC-OZ-LT
*All circuit boards will require correct board voltage install, and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*
Balboa Water Group® 53834 Circuit Board model EL2000 Mach 3 (EL2000M3), comes with Chip EL2000M3R2C.
Compatible with: Balboa® ML digital topside panels.
How to Replace your Circuit - Board Video
