Product Description

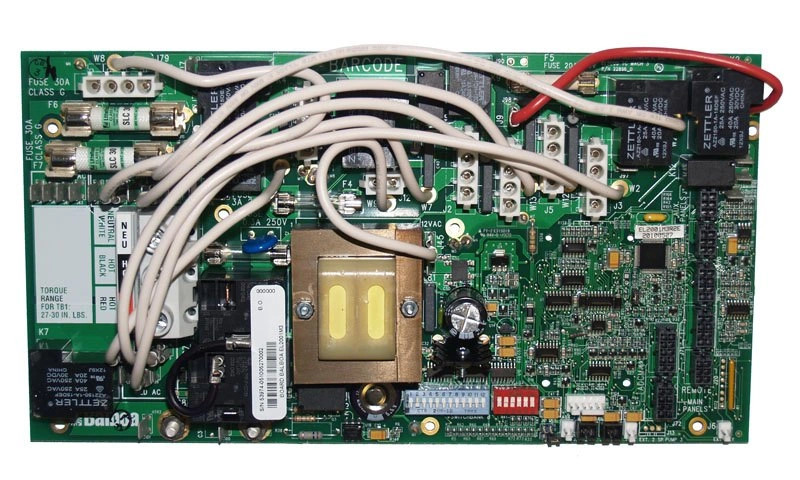

Balboa EL2001 Mach 3 Circuit Board 33-53974-K
Description
Note: Installs in a Plastic enclosure only.
SKU: 53974
MPN: 53974-05
Model: EL2001M3
Chip Number: EL2001M3R2(x)
UPC: 753610462668
Manufacturer: Balboa Water Group®
Warranty: 1 yr. with manufacturer
Product Features:
- Compatible with Balboa® ML Digital Topside Panel
- EL2001M3R2 Chip
- Utilizes M7 Technology
- No need for a pressure switch or external sensors
Product Specifications:
- Pump #1: 2-Speed
- Pump #2: 1-Speed
- Circulation Pump
- Blower
- 12V/120V Light Circuits
- Compatible with Balboa® ML Digital Topside Panel
- Connection: Molex plug
*All circuit boards will require correct board voltage install and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*
Documents:
- 53974 Tech sheet
- Balboa® chip cross number
Replacement for the following part numbers: Model EL2000 Mach 3, ML Series55021-01, EL2001M3R2E, EL2001M3R2D, EL2001M3R2C, EL2001M3R2B, EL2001M3R2A, 53882-03 (System), 55066-04 (Control System), 53834-04, 3-60-0097, 3-70-0808 (Control System), HS2000R1B
How to Replace your Circuit - Board Video
