Product Description

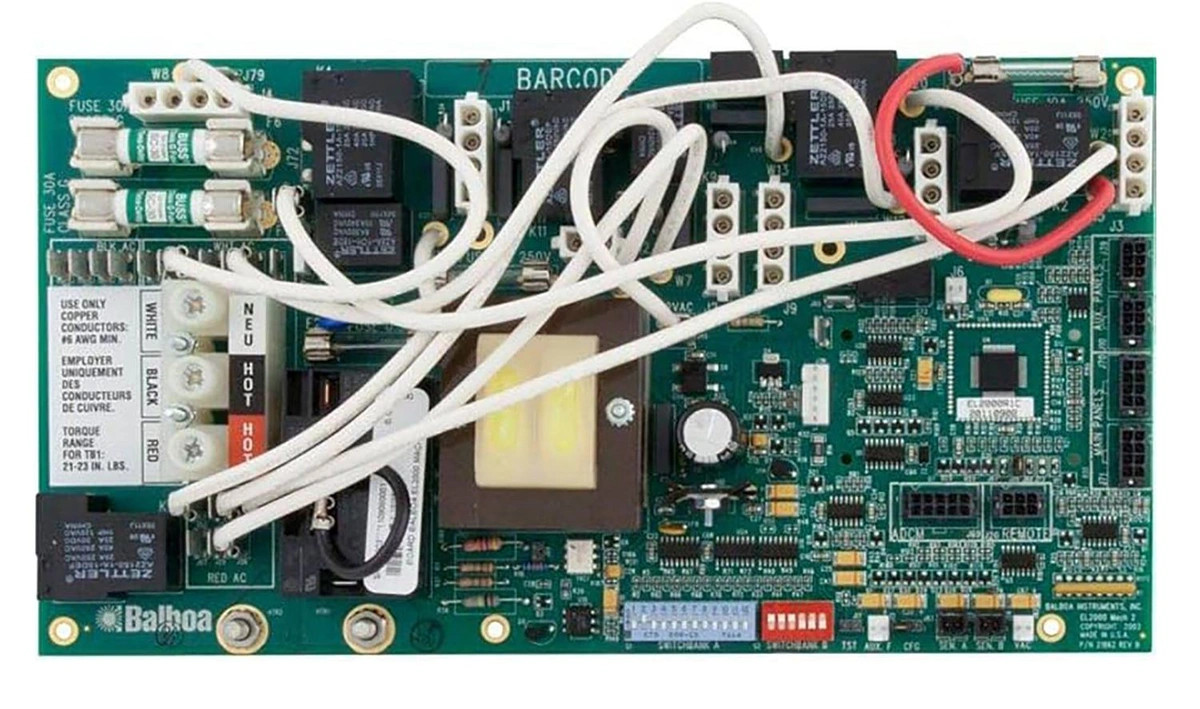

Balboa EL2000M2 Circuit Board 33-59003-K
Balboa EL2000-M2 Tech & Info Sheet
Description
SKU: 59003
MPN: 59003
Model: EL2000R1(x)
UPC: 710033382966
Manufacturer: Balboa Water Group®
Warranty: 1 yr. with manufacturer
Features:
- Chip Model: EL2000R1(x)
- Compatibility: Designed to work seamlessly with Balboa® ML Digital Topside Panels.
- Installation Requirement: Must be installed in a metal box; it is not compatible with plastic boxes. For plastic boxes, consider using 53834-04.
Product Specifications:
- Connection: Equipped with a Molex Style Plug for secure and reliable connections.
Power Requirements:
- Voltage: Operates with both 120V and 240V options, supporting 50/60Hz.
- Components:
- 120V Ozone
- 12V Spa Light
- Optional: 120V Fiber Optic Light
- 120V AV (Stereo)
- 240V 5.5KW Heater
*All circuit boards will require correct board voltage install, and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*
This versatile chip ensures compatibility with a range of power configurations and is an ideal choice for enhancing your spa’s digital control system when used with Balboa® ML Digital Topside Panels. Please note the specific installation requirements for a metal box.
This circuit board replaces: Thermo Spa 53363 / 53361 / 53361-01- TS2000R1A, TS2000R1B & TS2000R1C. TS2003R1A, Clearwater Spa BC2003R2A/ BC2003R2B & BF01R1A/BF01R1B
