Product Description

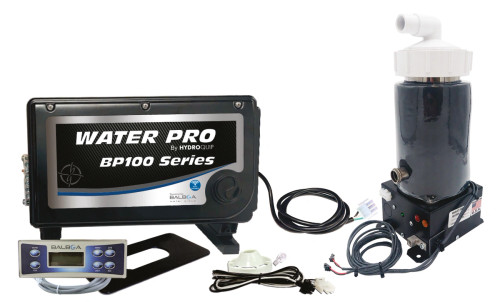

BP100 Balboa Control System 50-BP1-500-55-R Remote Heater TP500 Topside
50-BP1-500-55-R
The Balboa BP100 retro fit kit 50-BP1-500-55-R is the version with Remote Heater and includes the TP500 control panel and template that can be used to cover a larger hole in spa shell as needed.
This control system has M7 technology equipped with built-in sensors inside the remote heater.
This BP100 control system operates a 1 or 2 speed pump1, a 1 speed pump2 OR a 1 speed blower.
A circ pump is supported with this kit.
When programmed for Circ pump, Pump 1 is single speed only.
Featuring a 5.5 kilowatt remote heater.

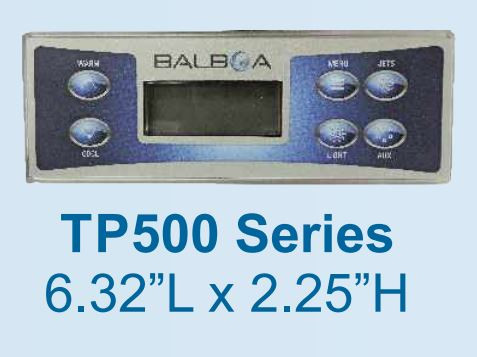

Includes a TP500 topside control panel with a 6 button overlay.
The overlay buttons are Warm, Cool, Menu, Jets, Light, Aux.
Water Pro BP100 Retro-Fit Spa Control with 5.5kW Remote Heater and TP500 Panel
Specifications
Components Supported: Pump1 + Blower/Pump2
Heater Version: Remote Heater
Heater Wattage: 5.5kW
System Voltage:115/230V
Topside Included TP500
Special Features: WiFi Compatible (wifi module sold separately if needed)
Model: BP100 Series
USA and Canada UL Recognized
