Product Description

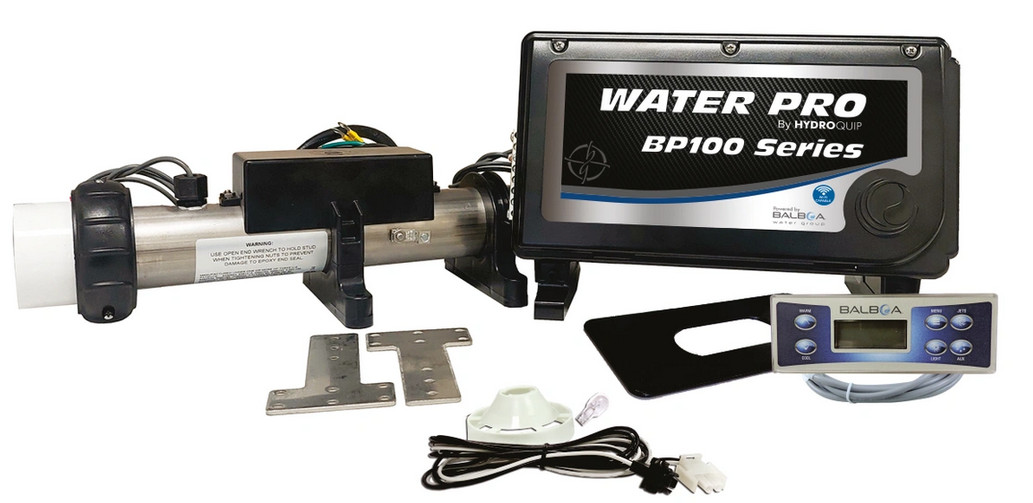

BP100 Control System 50-BP1-500-40-R Remote Heater TP500 Topside
50-BP1-500-40-R
The Balboa BP100 retro fit kit 50-BP1-500-40-R is the version with Remote 4kw Heater and includes the TP500 control panel and template that can be used to cover a larger hole in spa shell as needed.
This control system has M7 technology equipped with built-in sensors inside the remote heater.
This BP100 control system operates a 1 or 2 speed pump1, a 1 speed pump2 OR a 1 speed blower.
A circ pump is supported with this kit.
When programmed for Circ pump, Pump 1 is single speed only.
Featuring a 4.0 kilowatt remote heater.
Includes a TP500 topside control panel with a 6 button overlay.
The overlay buttons are Warm, Cool, Menu, Jets, Light, Aux.
Topside control panel dimensions 6.32" L x 2.25" H.
Water Pro BP100 Retro-Fit Spa Control with 4kW Remote Heater and TP500 control panel
Specifications
Components Supported: Pump1 + Blower/Pump2
Heater Version: Remote Heater
Heater Wattage: 4kW
System Voltage:115/230V
Topside Included TP500
Special Features: WiFi Compatible (wifi module sold separately if needed)
Model: BP100 Series
Required flow rate: 25 gpm.
Electrical input spec: single phase, 120/240VAC, 60hz
Electrical outpost spec:
Circuit(s) Max Amps
Pump(s) 12a
Blower 4a
Ozone 0.5a
Circ Pump 2a
Light 2a
Heater 16a
USA and Canada UL Recognized
Shipping weight: 13 lbs. (Free Shipping)
System Dimensions 15”W x 8.25”H x 4”D
Components Supported: Pump1 + Blower or Pump2
Heater Version: Remote Heater
Heater Wattage: 4.0kW
System Voltage: 115/230V
Topside Included TP500
Special Features: Circulation Pump = Supported, Wi-Fi Capable (wifi module sold separately)
Model:BP100 Series
