Product Description
BWG Dura-Jet Wet Ends
Various HP's
FREE SHIPPING

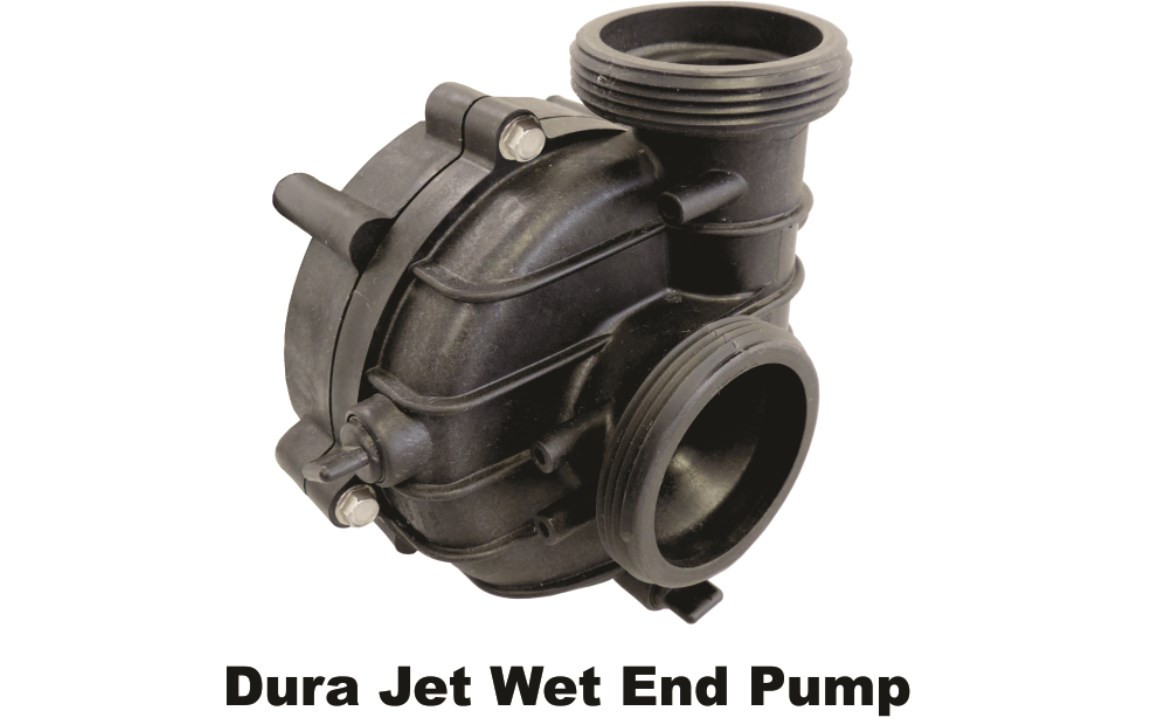

Sta-Rite/Pentair/Balboa Water Group Wet End
Available in 1HP, 1.5HP, 2HP, 2.5HP and 3HP
Side discharge, 2"mbt suction/discharge, 48/56 frame wet end for Dura-Jet pump. This wet end is used with a 3.0hp, 48 or 56 frame thru-bolt style motor. The motor used may be either a single or dual speed. The wet end can be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws
| Manufacturer | Balboa Water Group |
| Pump Model | Dura-Jet DJ Series |
| Motor Frame | 48 Frame Thru-Bolt, 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 3.0hp |
| Volute Fastening Type | 4 Bolts and 4 Nuts |
